Description

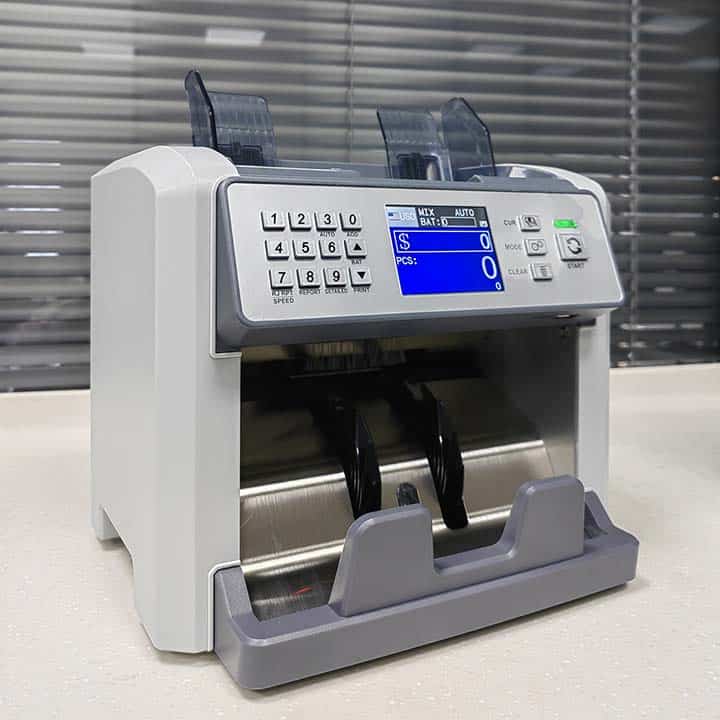

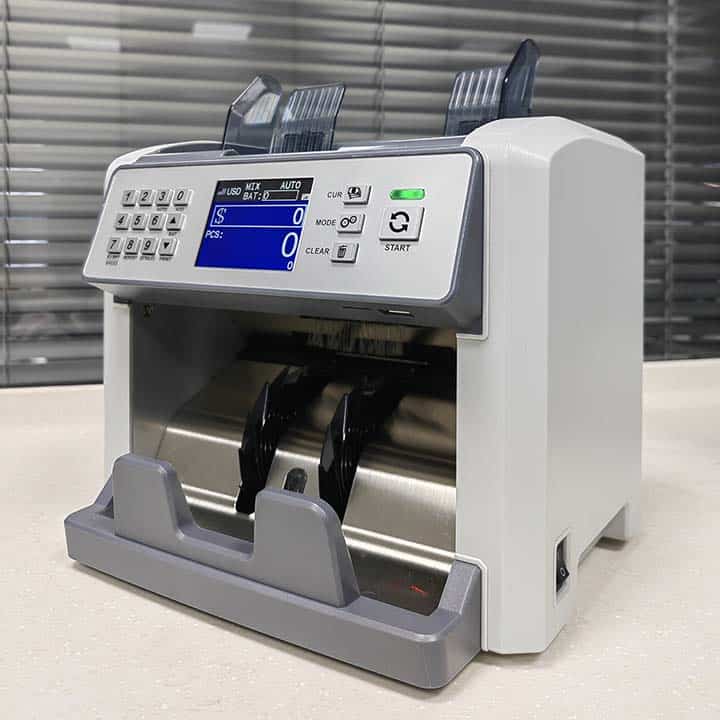

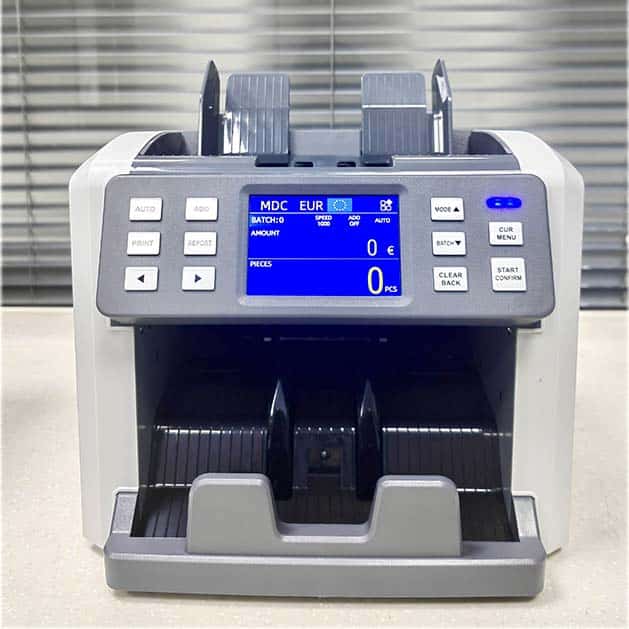

EC1900 EUR/USD Multi-Currency Banknote Value Counter approved by ECB.
The EC1900 counterfeit banknote counter and detector allows you to carry out cash control tasks quickly, easily and efficiently. Its design and functionality facilitate the tasks of detecting counterfeit banknotes and counting them without the need to separate them by value, also showing a final report of the counting value by denomination, as well as the total sum.
This machine, which offers features such as banknote detector and counter, is upgradable and therefore adaptable to all new Euro banknotes that appear in the future. In addition, it is approved by the ECB for the detection of counterfeit banknotes, offering maximum security in this regard.
The new model year 2024 – EC1900 will incorporate a new state-of-the-art CIS image sensor that ensures FULL counting accuracy with extended sensor durability, and USB Plug&Play update software.
Features and improvements of the new EC1900 model – 2024 compared to previous versions:
- The main difference is superior performance and service life length.
- Enhanced display with advanced 2.8-inch LCD features
- Plug&Play update software by USB port
- New multi-currency CIS sensor more accurate and durable
- State-of-the-art system to detect counterfeits using multiple combined sensor scanners: CIS/IR/MG/MT/UV
General characteristics:
- Counting mixed banknotes with summarized results by denomination.
- Classification by denomination.
- With BATCH function to program batch counting of banknotes
- With ADD function for cumulative batch counting
- Advanced state-of-the-art intelligent counterfeit detection system: CIS/IR/MG/MT/UV. Based on combined safety systems (UV, MG, IR, visible image, density sensor, metal filaments).
- Adjustable counting speed, which allows the best possible processing of banknotes based on their density and condition.
- Supports detection and counting of 15 currencies
- With option to print results (with optional printer accessory, not included)
- Simple mechanisms to clean sensors and mechanisms
- Configurable banknote counting speed: 800 pcs/min, 900 pcs/min, 1000 pcs/min (selectable)
- Upgradable device to detect and count new banknotes that may enter circulation
- Tested by the European Central Bank with excellent results.
Technical Specifications:
- Counting speed: 800/1000/1200/1500 per min (selectable).
- Supported currencies: USD, EURO, GBP
- Monitor: 2.8-inch LCD screen
- Feed tray capacity: 500 bills.
- Output tray capacity (stacker): 200 banknotes.
- Display: Color LCD screen.
- Banknote size range: (W*L): 60 X 85 X0.08 mm ~ 100 X 190 X 0.12 mm
- Banknote thickness:08~0.12 mm
- 4 Detection Types: UV, MG, IR, Single CIS
- Automatic currency identification mode.
- Multi-currency mode: allows the simultaneous counting of banknotes of different currencies.
- Connectivity firmware updates: USB; Printer port; RJ11
- Mechanical feeding system: By friction rollers.
- Power supply: 100~240V DC, 50~60HZ
- Electricity consumption: max. 50 W.
- Dimensions: 266 mm x 232 mm x 270 mm
- Weight: 5.80 kilos
Includes:
- EC-1900 EURO banknote counter and detector.
- Power cord.
- Cleaning brush.
- User manual.
- USB cable upgrades (included).
- External LCD screen (optional).
- Printer (optional).
